Node symbols are the shapes that define the appearance of a
node. The symbol is only one property of a node style
along with color, font, size, and so on, but it is obviously the most
visible.
Built-in node styles have pre-defined node symbols
based on the diagram type. However, you have full control to change
them as you see fit.
|
|

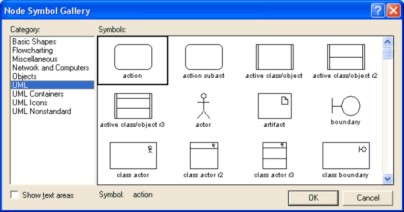

The node symbol gallery contains hundreds of
different shapes sorted by functional category. You can add
any symbol to a diagram directly from the gallery, or you can
use a pre-defined node style from a template (shown on
the left side of the workspace).
|
